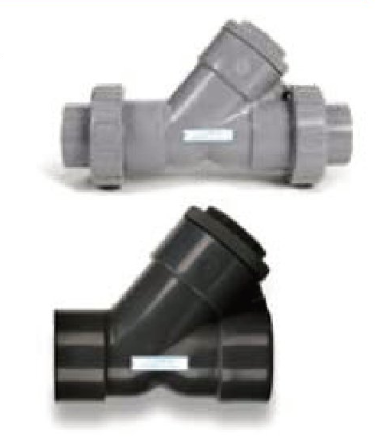

YC Series Y-Check Valves

Products

Valves & Automation

• PVC, CPVC and PVDF
• Full Flow Design
• Minimum Pressure Drop
• PVC Coil to Guide Piston to a Positive Seat
• Minimal Back Pressure Required to Seat Piston

• Drilled Cap for Easy Drainage
• True Union End Connections

*PVC and CPVC socket ends available to ISO 727-1 and threaded ends to 8521.

SIZE	MATERIAL	END CONNECTION	SEALS	PRESSURE RATING (NON-SHOCK)
1/2" TO 4" PVC AND CPVC AND 1/2" TO I" PVDF
1/2"-4" (DN15-DN100)	PVC or CPVC	Socket, Threaded, Flanged or True Union EPDM	FPM or EPDM	150 PSI @70°F (10 BAR@ 21°C) Non-Shock
1/2"-1" (DN15-DN28)	PVDF	Flanged	FPM	150 PSI @70°F (10 BAR@ 21°C) Non-Shock
